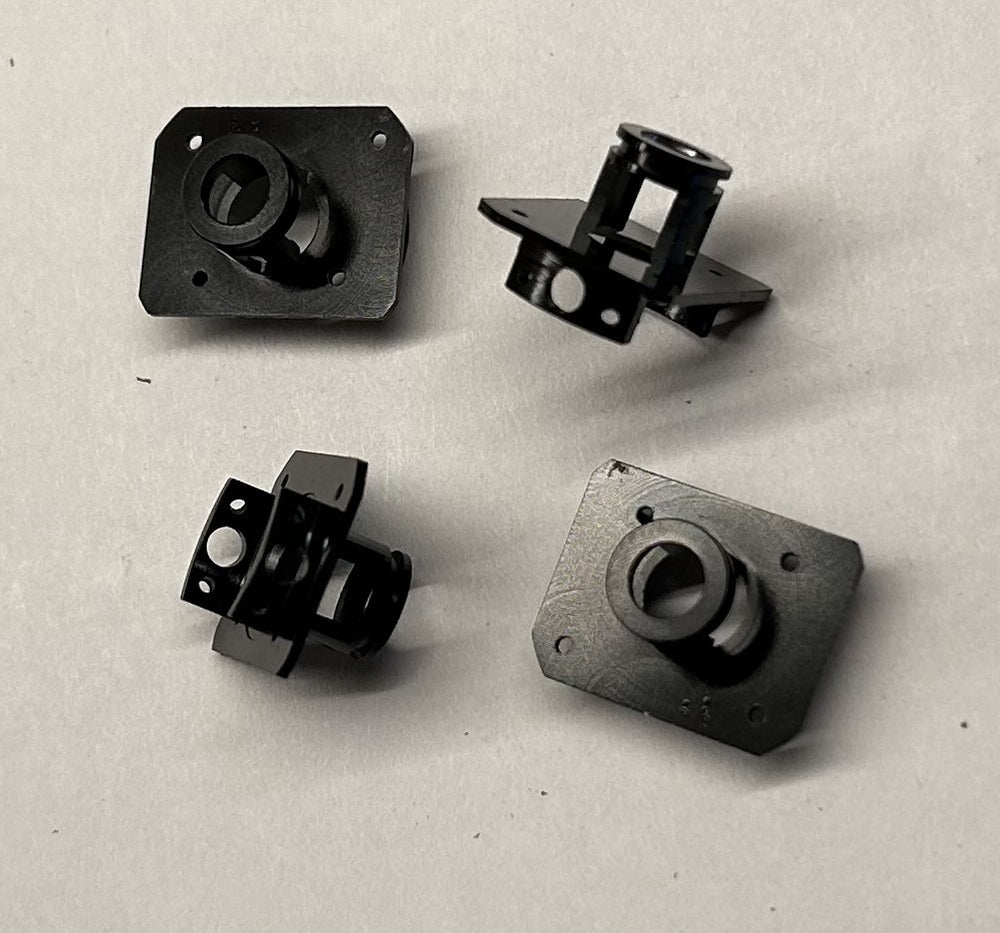

Aluminum Endbell -.610 Can Mounting-Short (With Standard Brush Hood Holes)

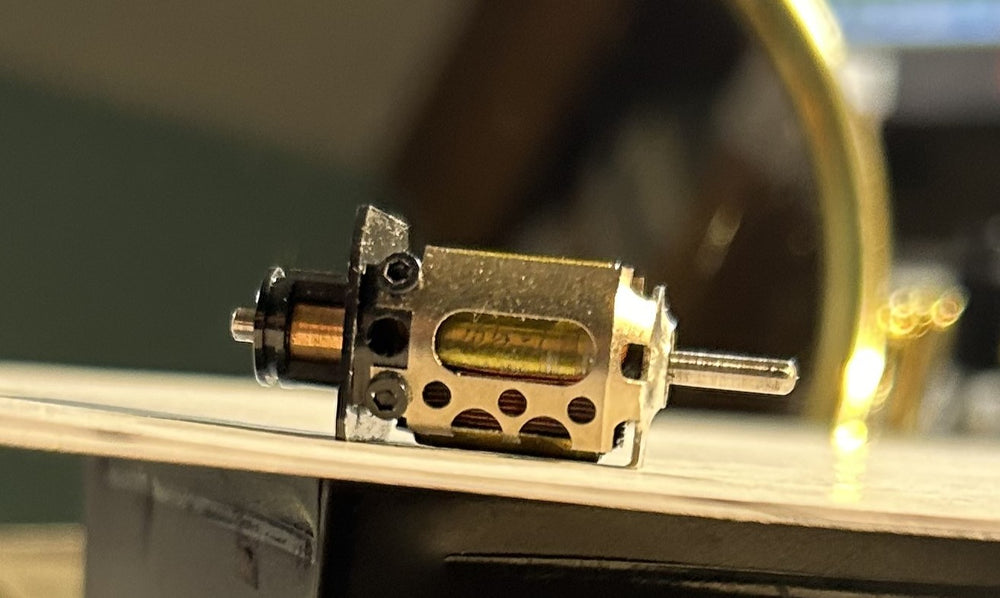

This is a new complimentary end bell for the new .620 I.D. 27 Lite Cans. The bottom flange is extended to .250" from bearing centerline to match the extended tab on the new cans. Additionally, material has been added to the other three sides of the perimeter to allow for the installation of advanced timing hardware holes. This variation has brush hood holes at zero timing. It does however have holes for the can mounting. The holes provided will need to have the 0-80 threads tapped. All of the DMW end bells have the bearing pocket chased with a 5 MM end mill to ensure proper fit of the end bell ball bearing without binding.
